3-axle low loader swan hand/low bed
850,00 €
incl. 19% VAT plus Shipping
3-axle low loader swan hand/low bed, scale 1/14, metal construction kit
Delivery date: September 2024
Product details:
– Torsion-resistant steel frame (sandwich construction)
– Frame and gooseneck made of 2 and 1 mm sheet steel (laser cut/CNC bent)
– Low loader axles made of steel with leaf spring assemblies
– Incl. spindle drive for lowering and lifting the low bed
– Solid aluminum lifting device
– Ball bearing mounted plastic rims with double tires (solid rubber)
– Platform with real wood inlay
– Aluminum drive-on ramps
– Storage box with lid (magnetic lock)
– Two storage compartments under the platform for electronic components
– Prepared for the installation of steering axles
– 4 warning signs (adjustable)
– 12 retractable lashing eyes for load securing
– Rotating beacon holder on bracket (suitable for item no. 907579)
– Mud flaps
– Instructions and decal sheet
– Dimensions: Length 1,150 mm, width 205 mm, height 170 mm
– Total weight: 7,500 g (gooseneck 2,500 g, drop deck 5,000 g)
– Lifting force / load max. 25,000g
Caution! Not suitable for children under 14 years.
item code: 907700
In stock
Description
3-axle low loader swan hand/low bed, scale 1/14, metal construction kit
Delivery date: September 2024
Product details:
– Torsion-resistant steel frame (sandwich construction)
– Frame and gooseneck made of 2 and 1 mm sheet steel (laser cut/CNC bent)
– Low loader axles made of steel with leaf spring assemblies
– Incl. spindle drive for lowering and lifting the low bed
– Solid aluminum lifting device
– Ball bearing mounted plastic rims with double tires (solid rubber)
– Platform with real wood inlay
– Aluminum drive-on ramps
– Storage box with lid (magnetic lock)
– Two storage compartments under the platform for electronic components
– Prepared for the installation of steering axles
– 4 warning signs (adjustable)
– 12 retractable lashing eyes for load securing
– Rotating beacon holder on bracket (suitable for item no. 907579)
– Mud flaps
– Instructions and decal sheet
– Dimensions: Length 1,150 mm, width 205 mm, height 170 mm
– Total weight: 7,500 g (gooseneck 2,500 g, drop deck 5,000 g)
– Lifting force / load max. 25,000g
Caution! Not suitable for children under 14 years.
Product safety
Product safety
Reviews (0)
You must be logged in to post a review.
Shipping & Delivery
You may also like…
1/14 Steered low loader axle
Steered low loader axle, scale 1/14, suitable for Carson low loader models art. no. 907060 and art. no. 907700, also ideal for self-build models, very sturdy design, axle parts made of hardened steel, steering joints made of aluminum, steering heads with plain bearings, wheel studs Ø 5mm x 18mm length, track width approx. 185mm, maximum steering angle 45°, steering rod for connecting further steel axles with M3 ball joints, weight approx. 125g, total length: 162mm, height: 18mm, width: 31mm, contents: 1 low-loader axle, 1 steering rod, mounting material, instructions
Caution! Not suitable for children under 14 years.
item code: 907699
RECATULAR SPOTLIGHT 12VOLT
RECATULAR SPOTLIGHT, scale 1/14, with lighting board 12 Volt, , housing from plastic, glass fluted, measure: housing 8,5 x 8,5mm, depth 7mm, total height with foot 14mm, fastener Ø 2mm x 2,5mm length, lighting board 4,8 x 4mm, length of the cable 20cm, included: 2 housings black, 2 glasses, 2 resistors, 2 lighting boards with cable, instruction
Item code : 907578

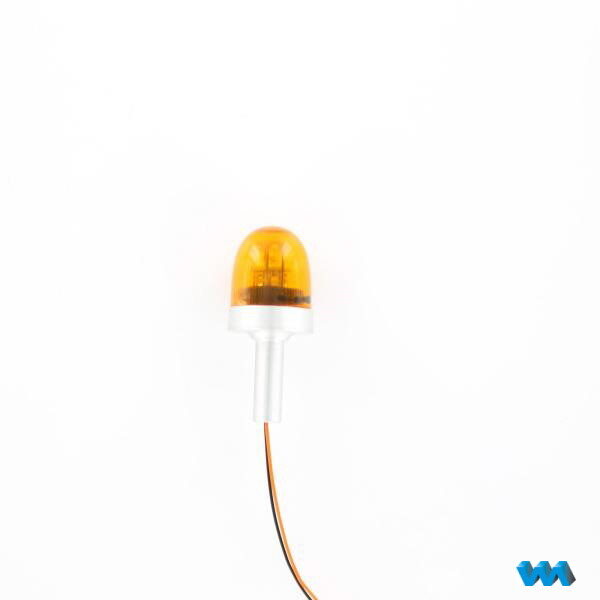

HELLA FLASHING LIGHT ORANGE, FOR VERTICAL MOUNTING
Hella flashing light orange, scale 1/14, for vertical mounting, 7 orange SMD's, 4.5 to 13.5 volts, 13 selectable programs, 6-round and 7 flash modes, aluminum housing, 4 different glasses to share information, dim. : Overall height 28mm, diameter 12mm, 4mm diameter pin, cable length 250mm, capacity: 1 Housing with electronics, 4 glasses, instructions
Licensed by Hella
item code : 907579
RECATULAR SPOTLIGHT 7,2Volt
RECATULAR SPOTLIGHT, scale 1/14, with lighting board 7.2 Volt, , housing from plastic, glass fluted, measure: housing 8,5 x 8,5mm, depth 7mm, total height with foot 14mm, fastener Ø 2mm x 2,5mm length, lighting board 4,8 x 4mm, length of the cable 20cm, included: 2 housings black, 2 glasses, 2 resistors, 2 lighting boards with cable, instruction
Caution! Not suitable for children under the age of 14.
Item code : 907144
Related products
Büssing 8000 S 13
Büssing 8000 S 13 as a new edition in scale 1:16
In addition to many different trucks, the Büssing 8000 S 13 was one of the most famous and also most impressive trucks of its time in the 1950s. A typical feature for this truck era were the long engine hoods, far too little horsepower and the harsh sound of the four-stroke diesel engines. The 6-cylinder engine produced only 180 hp, with the "S" standing for standing engine and the "13" for the total displacement of 13 liters.
More than 20 years ago we produced this model and distributed it through the company Conrad Electronic. After a few years we were forced to discontinue the model. So the Büssing disappeared from the market again, but the demand for the model was unbroken. Therefore we decided to resurrect it in our anniversary year. New injection molds were made for the body and add-on parts. The platform was reinforced and got a real wood floor. The interior was revised and completed with pedals, gear stick and hand brake lever.
Optionally, the headlights can be retrofitted with a lighting kit (item no. 251002). The drive set (item no. 251001) includes an underfloor motor from Servonaut, which transmits power to the rear axle via a stainless steel cardan shaft with length compensation. This gives the model enough power and the appropriate sensitivity for maneuvering with the matching 2-axle trailer (item no. 251003). This can also be optionally retrofitted with a lighting set (item no. 251004). Until the beginning of the 50's it was even allowed to couple two of these trailers. A real challenge as a captain of the road.
Technical details:
Length approx. 570mm, width approx. 160mm, height approx. 165mm, weight approx. 1,600g.
The kit is supplied unpainted.
Scope of delivery:
- Frame made of aluminum with all drill - and threaded holes
- Ball bearing rear axle made of reinforced plastic with metal differential
- Front axle made of reinforced plastic
- Ball bearing Trilex - rims in front, in the rear Trilex - double rims
- original Fulda Coloss tires plus spare tires
- Leaf spring set front and rear made of spring steel
- driver's cab consists of several plastic parts (ABS)
- flatbed made of polystyrene with drop sides made of injection molded parts and real wooden floor
- Interior, tank, air tank, splash flaps, hardware parts, exhaust etc.
- Decal sheet and detailed building instructions
Caution. Not suitable for children under 14 years.
item code: 251000
Pivoted bogie with axle
Pivoted bogie with axle, scale 1/14, bogie for self-construction of trailer chassis, made of sheet steel, dimensions: length with drawbar 265mm, without 95mm, width with axle 165mm, without 100m, height 75mm, content: 1 set of steel parts for bogie, 1 plastic drawbar, 1 axle with dummy air springs, 1 pivot bearing with sliding washers, fastening material, instructions
Technical details:
- Bogie made of sheet steel in sandwich construction
- Bearing mounted bogie (adjustable) with sliding pad for easy maneuvering
- Drawbar (one-piece) made of fiber
-reinforced plastic with checkered plate application
- The drawbar is held by two tension springs for easier attachment
- Coupling height 75 mm- Trailer axle with dummy air suspensionDanger!
Attention! Not suitable for children under 14 years.
item code: 907625
2-Axle Material Trailer
2-Axle Material Trailer, As in the original and in the model, the 2-axle building material trailer reflects its attractive workmanship and appearance. This makes the trailer an unmistakable companion on real roads and as a model on the course. The torsion-resistant frame made of sheet steel enables a payload of approx. 5,500 g. A new suspension is also included, this can optionally be raised by 8 mm and thus compensates for the coupling level to a raised articulated tractor. However, this can also be installed without a lift, both suspension variants are included in the kit. The built-in shock absorbers and air spring dummies function as on / off spring travel limiters. This enables a higher axle articulation and reproduces a driving image true to the original. A suitable optional accessory set (item code: 907623) refines the trailer with compressed air tanks, spare wheel with bracket and a lashing set.
Technical details:
- Torsion-resistant steel frame in sandwich construction
- Frame made of 3 and 1 mm sheet steel, laser cut and CNC bent
- Bogie made of sheet steel in sandwich construction
- Bearing mounted bogie (adjustable) with sliding pad for easy maneuvering
- Drawbar (one-piece) made of fiber-reinforced plastic with checkered plate application
- The drawbar is held by two tension springs for easier attachment
- Coupling height 75 mm
- CNC milled aluminum side panels with detailed surface engravings
- The side walls are locked by neodymium magnets
- All 5 drop sides are functional
- 5 hinges per side wall
- 4 hinges on the rear drop side
- Real wood floor application
- Chrome rims with ball bearings and wide tires
- Solid underrun protection made of steel (left / right)
- Detailed semi-trailer axles with dummy air springs, optionally with elevation by + 8mm (kit contains both versions with / without elevation)
- Mudguards with splash guards
- Bumper rag set
- CNC machined aluminum rear bumper
- Decor set, detailed building instructions
Dim. Trailer: LxWxH: 700 x 195 x 225 mm, Weight: 4,100 g
Dim. Structure: LxWxH: 550 x 195 x 130 mm Height of side wall 75 mm, loading height 110mm
item code: 907624
Attention! Not suitable for children under 14 years.
Rear light board with housing Volvo FH16 tow truck
Rear light board with housing, scale 1/14, suitable for the Tamiya Volvo FH16 tow truck, from 7.2 to 12 volts, the following light functions: rear light with position light, left and right indicators, reversing light, fog light and brake light, metal rear light mask, cable length approx. 80cm, content: 1 right rear light, 1 left rear light, 2 metal rear light masks, tape, instructions
Attention! Not suitable for children under 14 years.
item code: 907632
Goldhofer TU4 flatbed trailer
Goldhofer TU4 flatbed trailer, scale 1/14, kit, laser cut sheet steel, one-piece ramps (manually hinged and adjustable), bogie double ball bearing, axles leaf suspension with pendulum compensation, rear support manually adjustable, 7-chamber taillights, license plate holder, fender semicircular, 16-speed ball bearing wheels , Wood supports, spacers, underride protection, decals, building instructions
Dimensions: length 855mm, width 195mm, total height 265mm, height platform 75mm, weight 5.2kg
item code: 907400
Warning! Not suitable for children under 14 years.
2-axle dolly rigid for Gigaliners
2-axle dolly rigid for Gigaliners, in Tamiya scale, with fifth wheel for mounting Tamiya and Carson semi-trailers.
- steel frame (laser cut and welded)
- 7 chamber taillights
- 8-way ball-bearing wheels
- Air spring dummies
- Saddle plate made of plastic
- Tiller made of aluminum, adjustable in length and height
Technical specifications:
Length: 365mm
Width: approx. 195mm
Height: about 85mm
item code : 907210
Warning! Not suitable for children under 14 years.
