1/14 Alloy 2-Speed Manual Transmission Compact
200,00 €
incl. 19% VAT plus Shipping
1/14 Alloy 2-Speed Manual Transmission Compact
This compact 2-speed transmission is designed for use in TAMIYA 2- and 3-axle chassis in conjunction with the 2-speed transfer case. It offers you the possibility to convert or upgrade your model to all-wheel drive. It impresses with its simple installation, as existing bores/threads are used here. The small design allows the installation of the driven front axle (500907267 – front axle installation kit 500907280 is required.) .

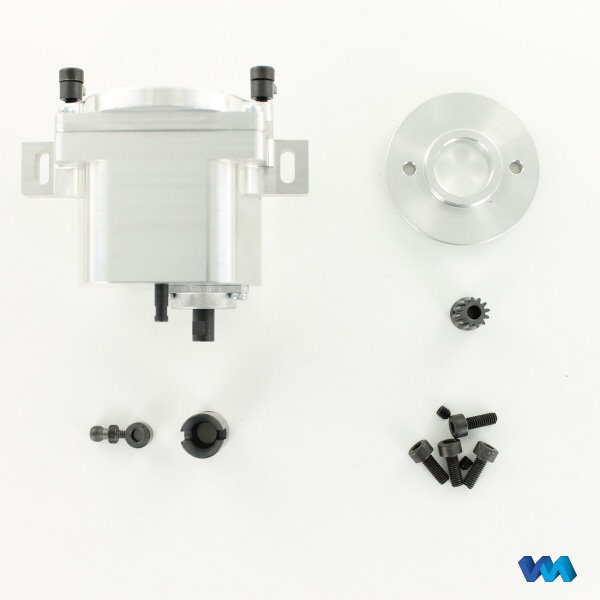

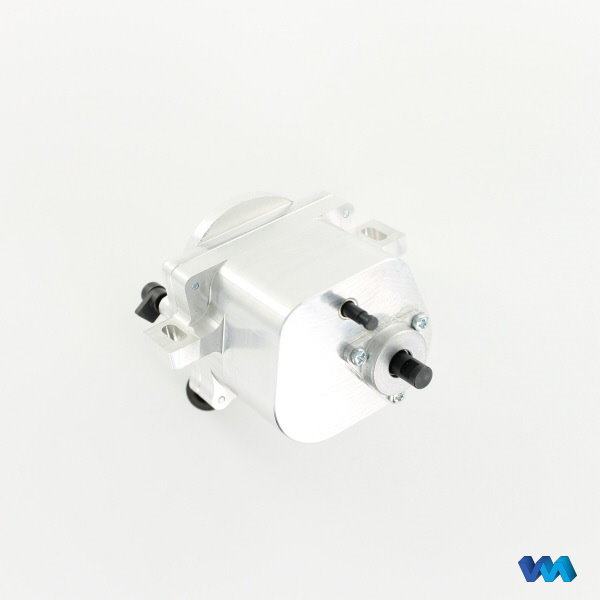

Compact 2-speed manual transmission
2-speed: gear ratio 1:11.3 (1st gear) and 1:5.666 (2nd gear)
5-fold ball bearing
CNC machined aluminum housing
Hardened steel gears
Incl. aluminum motor mount for 540 motors (suitable for CARSON and TAMIYA standard and truck motors)
Incl. motor pinion (3,17mm) and mounting material
Easy mounting by using existing holes (2 screws) on the ladder frame
5 mm gearbox/output shaft
The gears are shifted by a micro-servo
Dimension gearbox (o. motor) LxWxH: 47 x 62 x 35 mm
Weight (without motor) approx. 165 g.
Switching servo and 540 motor are not included.
Caution! Not suitable for children under the age of 14.
item code: 907265
In stock
1/14 Alloy 2-Speed Manual Transmission Compact
This compact 2-speed transmission is designed for use in TAMIYA 2- and 3-axle chassis in conjunction with the 2-speed transfer case. It offers you the possibility to convert or upgrade your model to all-wheel drive. It impresses with its simple installation, as existing bores/threads are used here. The small design allows the installation of the driven front axle (500907267 – front axle installation kit 500907280 is required.) .
Compact 2-speed manual transmission
2-speed: gear ratio 1:11.3 (1st gear) and 1:5.666 (2nd gear)
5-fold ball bearing
CNC machined aluminum housing
Hardened steel gears
Incl. aluminum motor mount for 540 motors (suitable for CARSON and TAMIYA standard and truck motors)
Incl. motor pinion (3,17mm) and mounting material
Easy mounting by using existing holes (2 screws) on the ladder frame
5 mm gearbox/output shaft
The gears are shifted by a micro-servo
Dimension gearbox (o. motor) LxWxH: 47 x 62 x 35 mm
Weight (without motor) approx. 165 g.
Switching servo and 540 motor are not included.
Caution! Not suitable for children under the age of 14.
Weight | 1 kg |
---|---|
