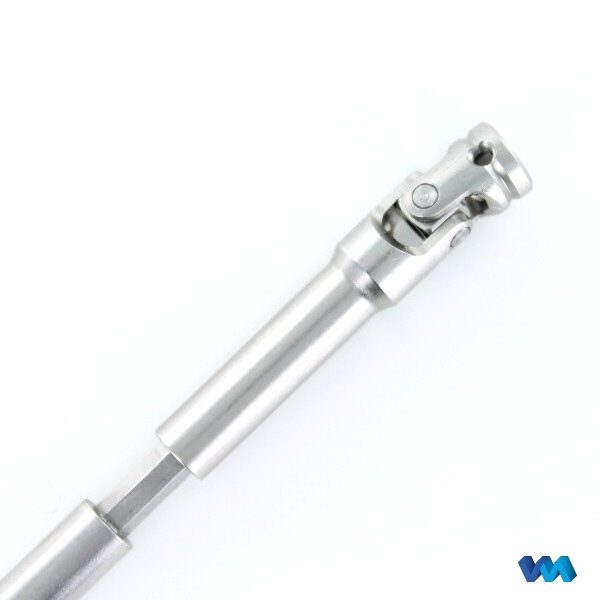

Cardan Shaft 52-62mm 4/4mm
Cardan Shaft 48-54mm 4/4mm
Cardan Shaft 45-50mm 4/4mm
2-axis Dump Trailer
2-axis Dump Trailer, 1/14 scale, fits the Arocs tipper Tamiya
Technical details:
• Kit
• Steel profile frame (laser cut and welded)
• Trough made of hard PVC (gray)
• 8-way ball-bearing wheels
• Fulda Variotonn off-road tires
• 7-chamber taillights
• Semitrailer axles with air spring dummies
• Automatic 2-hook rear panel lock
Length: 570mm, width: 190mm, height: 200mm, weight: 3.000g
item code: 907425
Attention! Not suitable for children under 14 years.
Attention! Not suitable for children under 14 years.
Rear axle with self-locking differential (robbe)
Rear axle with self-locking differential (robbe), very true to detail, for truck models in the scale 1:16.
The axle is equipped with a self-locking differential and can be built with, as well as without through drive, both shafts and axle covers are included. The drive axle is permanently locked and opens when cornering. A major advantage of this drive axle is that NO shift servos, Bowden cables and linkages are required for the differential locks. This is also the clarity and the space in the chassis to good. The axle components are housed in a heavy-duty reinforced plastic axle housing.
• Reproduction of the rear axle
• high ground clearance thanks to a "slim" differential housing (height 35 mm)
• 11 ball bearings
• self-locking differential (switching servo, linkages and Bowden cables are not required)
• Hardened steel bevel gears
• Axial ratio 1: 3, the direction of rotation can be adjusted by fitting the differential to your model.
• 4 mm transmission / input shaft
• Axle shaft 5mm (robbe dimension), suitable for the most common 1/16 scale rims
• simple conversion to axle with and without through drive (both shafts and axle covers are included in the kit)
• Dimensions rear axle LxWxH: 46 x 137 x 35 mm
• Weight approx. 130 g
• Supplied as a kit with pre-assembled differential
• suitable for the most common axle suspensions, including attachment point for pendulum suspension systems
All-round light electronics with BEC
All-round light electronics with BEC, the module is connected directly to a free switching channel on the receiver, there are 6 different programs to choose from (left or right-hand rotation, 3 speeds), of which any two programs can be permanently stored and activated via the remote control, max. 2 flashing lights can be connected, operating voltage 4.8-6Volt (BEC), the device has a terminal block with four outputs, suitable for incandescent lamps with max. 100mA per output, dim .: 35x23x13mm. Contents: 1x module built and tested, 1x Servo cable Graupner J / R, connection diagram
item code: 191521
Warning! Not suitable for children under 14 years.
Extension cable 2x 2m
Extension cable 2x 1m
MB Arocs Tipper Taillight LED board
MB Arocs Tipper Taillight LED board 7,2/12V, Scale 1/14, suitable from 7.2 to 12 volts, 4 light functions: turn signal, driving light, brake light and reversing light, colored stranded cable with a length of approx. 60cm, contents: 1 left and 1 right lighting board, installation instructions
Attention: Not suitable for the MFC of Tamiya
item code: 907616
Warning! Not suitable for children under 14 years.
Alum. Rear Underride protec. Tipper
Alum. Rear Underride protec. Tipper, Scale 1/14, suitable for the MB Arocs from Tamiya, parts made of aluminum, Traverse is suitable for the trailer hitch item code: 907182, Contents: 1 crossbeam, 1 set of bumper brackets, 1 bumper, mounting hardware, instructions
item code: 907619
Warning! Not suitable for children under 14 years.
Prop. shaft Set 6×6 (4) Tipper Steel
